The Anatomy of Industrial Brake Systems

Heavy machinery in industries like mining and manufacturing requires precise and reliable stopping power. An inability to control momentum can result in equipment damage, operational downtime, and serious safety risks. Industrial brake systems are crucial for safely managing kinetic energy, converting it into heat to bring large equipment to a controlled stop.

Key Components of Industrial Brake Systems

Industrial brakes rely on a coordinated network of mechanical, fluid, and electronic parts. While designs vary based on the application, most systems share a common architecture.

Calipers and Actuators

The caliper is the physical housing that contains the braking mechanism. When a braking command is issued, actuators within the caliper apply immense pressure to force the friction materials against a rotating surface. Actuators can be spring-applied, where a mechanical spring physically forces the brake closed until fluid or air pressure releases it. This creates a fail-safe mechanism; if power is lost, the brake engages automatically.

Brake Discs and Rotors

The brake disc, or rotor, is the rotating component attached to the machinery’s shaft. When the caliper clamps down on the disc, it creates the friction necessary to stop the equipment. Because this process generates intense heat, discs are typically manufactured from robust materials like cast iron, steel alloys, or specialized composites. Many industrial discs feature ventilated designs to accelerate heat dissipation and prevent thermal cracking during continuous operation.

Friction Materials

Friction materials, commonly known as brake pads or linings, make direct contact with the spinning disc. These materials must maintain a consistent coefficient of friction under extreme temperatures and heavy wear. Manufacturers use a variety of compounds, including sintered metals, ceramics, and organic blends, depending on the specific application. The right friction material prevents premature wear on the more expensive brake disc while ensuring smooth, reliable stopping force.

Hydraulic and Pneumatic Systems

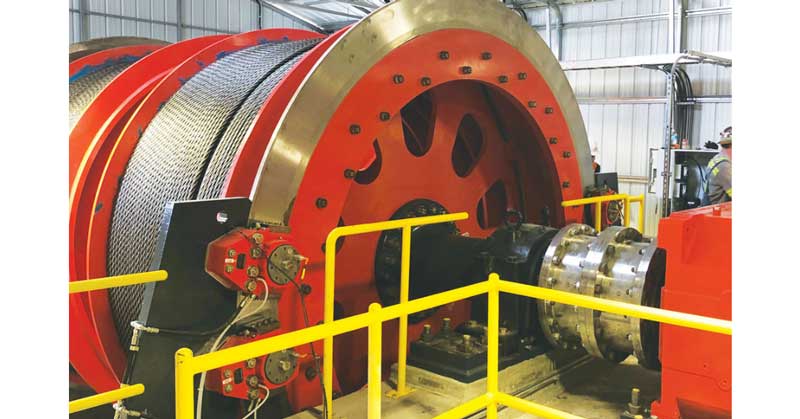

To generate the clamping force required by the actuators, industrial brakes rely on fluid or air power. Hydraulic systems use pressurized fluid driven by pumps and regulated by precision valves. Because hydraulic fluid is incompressible, it delivers massive, instantaneous force, making it ideal for heavy-duty applications like mining hoists. Pneumatic systems use compressed air. While they generally deliver less force than hydraulic systems, pneumatic setups are cleaner, easier to maintain, and highly effective for manufacturing conveyors and packaging equipment.

Control Systems

Modern industrial brakes do more than just clamp down on a disc. They are integrated with sophisticated control systems that manage the entire braking sequence. Sensors monitor parameters like speed, temperature, and wear, feeding this data back to Programmable Logic Controllers (PLCs). The PLC processes this information to apply braking force smoothly, preventing sudden jolts that could damage the machinery or drop a suspended load.

Design Considerations for Industrial Brakes

Selecting and implementing an industrial brake system is a highly technical process. Engineers must evaluate several critical variables to ensure the system performs safely over its intended lifespan.

Load Capacity and Stopping Power

The primary consideration is the amount of kinetic energy the brake must absorb. Engineers calculate the total inertia of the moving machinery and determine the required torque to stop it within a specific timeframe. A brake undersized for its load will overheat and fail, while an oversized brake may apply too much force, damaging the mechanical driveline.

Environmental Factors

Industrial environments are notoriously harsh. A brake system on an offshore wind turbine faces constant exposure to corrosive saltwater, while a brake in a subterranean mine must operate flawlessly despite heavy dust and moisture. Components must be sealed against contaminants and coated with protective finishes to resist corrosion. Furthermore, extreme ambient temperatures require specialized seals and hydraulic fluids that will not degrade or freeze.

Durability and Maintenance Requirements

Downtime is incredibly expensive in heavy industry. Braking systems must be designed for longevity and ease of maintenance. Features like automated wear compensators and easily accessible brake pads help technicians service the equipment quickly. Optimizing these systems often requires custom design and engineering to ensure every component aligns with specific operational demands. This targeted approach prevents premature wear and extends the service life of the entire machine.

Advanced Technologies in Industrial Braking

As industrial machinery becomes more sophisticated, braking technology is evolving to match. New developments focus on efficiency, energy recovery, and digital integration.

Regenerative Braking

Instead of wasting kinetic energy as heat, regenerative braking systems capture it. When the machinery slows down, the motor acts as a generator, converting the mechanical momentum back into electrical energy. This electricity is then fed back into the facility’s power grid or stored in battery banks. Regenerative braking is increasingly common in large-scale operations, such as port cranes and downhill conveyors, significantly reducing overall energy consumption.

Smart Braking Systems and IoT Integration

The Industrial Internet of Things (IIoT) is transforming how maintenance teams interact with braking systems. Smart brakes feature embedded sensors that continuously monitor pad wear, operating temperatures, and hydraulic pressure. This data is transmitted to cloud-based dashboards, allowing operators to track the health of their equipment in real time. Instead of replacing parts on a rigid schedule, maintenance teams can use predictive analytics to service the brakes exactly when needed, preventing unexpected failures and maximizing uptime.

Conclusion

Industrial brake systems are intricate networks involving mechanical force, fluid dynamics, and electronic control. Each part, from friction pads to PLCs, must work together seamlessly. As industries advance in load capacity and speed, the demands on these braking systems will grow.
